JUNIOR

Dit is waar onze reis begint. Maak kennis met ons bedrijf en wat we doen. Wij staan voor kwaliteit en goede service. Sluit je aan, terwijl we samen groeien en succesvol worden. We zijn blij dat je hier bent om deel uit te maken van ons verhaal. Laat ons beginnen met de allerkleinste:

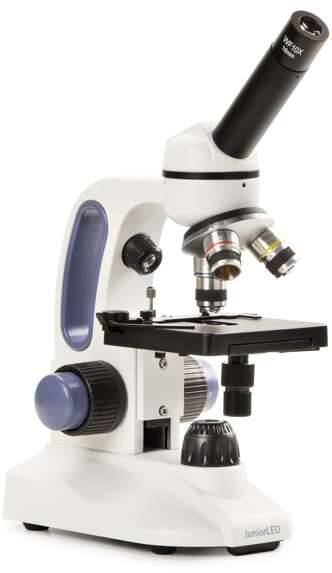

JR.1051 Novex Junior LED microscope  @  123 €

Secured WF 10x/16 mm eyepiece with pointer

Monocular head, 45° inclined, 360° rotatable
Forwarded triple revolving nosepiece
Achromatic 4x/0.10, 10x/0.25, S40x/0.65 objectives Plain 95 x 105 mm stage with integrated 16 x 50 mm XY mechanical stage Fix condenser NA 0,65

Coaxial coarse and fine adjustments; 90 graduations, 0,02 mm per graduation, 2,35 mm per rotation. Total travel range approx. 20 mm. With rack stop
Double 1W LED illumination with 3 built-in rechargeable batteries
External power supply 230-240 Vac / 5 Vdc USB-C mains adapter-charger

Supplied with USB-C type mains adapter-charger, 3 rechargeable AA batteries, dust cover, Allen key, manual. Packed in styrofoam box







Buitengewoon

JR.1651 Novex Junior LED EVO microscope @ 123 €

Secured DIN WF 10x/16 mm eyepiece with pointer

Monocular head, 45° inclined, 360° rotatable
Forwarded triple revolving nosepiece
Achromatic 4x/0.10, 10x/0.25, S60x/0.85 objectives
Plain 95 x 105 mm stage with integrated 16 x 50 mm XY mechanical stage Fix condenser NA 0,65

Coaxial coarse and fine adjustments; 90 graduations, 0,02 mm per graduation, 2,35 mm per rotation. Total travel range approx. 20 mm. With rack stop
Double 1W LED illumination with 3 built-in rechargeable batteries
External power supply 230-240 Vac / 5 Vdc USB-C mains adapter-charger

Supplied with USB-C type mains adapter-charger, 3 rechargeable AA batteries, dust cover, Allen key, manual. Packed in styrofoam box





JR.6010 Wide field eyepiece WF 10x/16 mm @ 14,70 €

JR.6010-M Wide field eyepiece WF 10x/16 mm @ 29 €

JR.6016 Wide field eyepiece WF 16x/11 mm @ 14,70 €

JR.6020 Wide field eyepiece WF 20x/11 mm @ 16,80 €

JR.6025 Wide field eyepiece WF 25x/11 mm @ 21 €

Achromatic objectives

JR.7004 DIN Achromatic 4x/0.10 objective. 35 mm parfocal  @ 11,60 €

JR.7010 DIN Achromatic 10x/0.25 objective  @ 17,90 €
JR.7020 DIN Achromatic 20x/0.40 objective @ 25 €
JR.7040 DIN Achromatic S40x/0.65 objective @ 27 €





JR.7060 DIN Achromatic S60x/0.85 objective @ 36 €

JR.7000 DIN Achromatic S100x/1.25 objective  @ 36 €

Miscellaneous
JR.9992 Spare LED for Junior LED Evo @13,70 €

JR.9992-E Spare Electronics PCB for Junior LED Evo  @ 6,30 €
